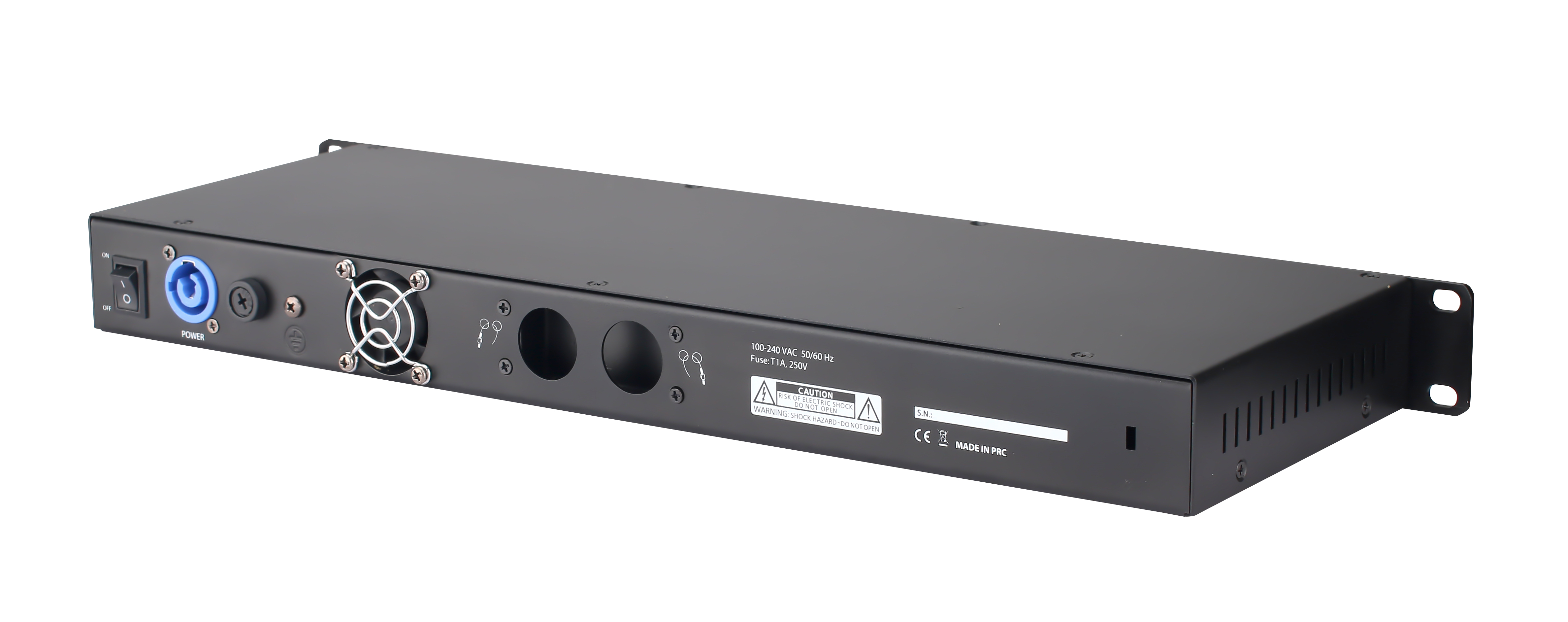

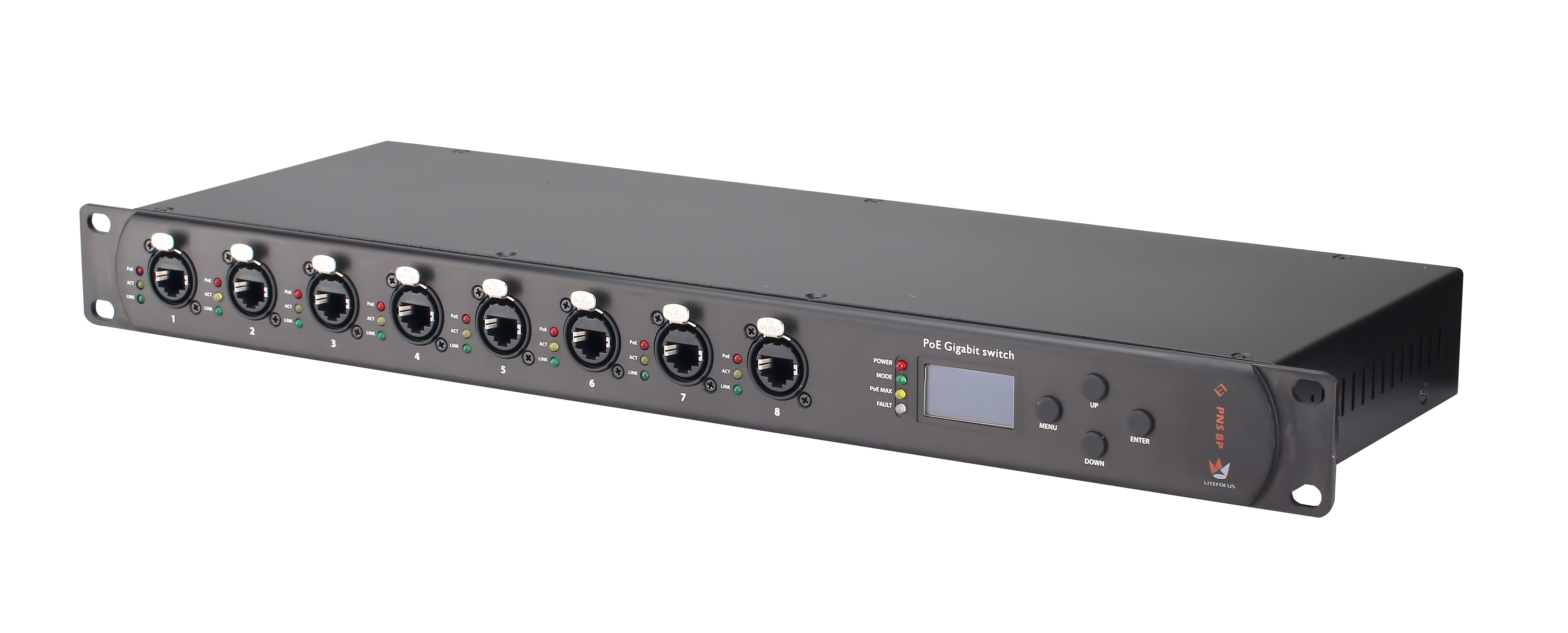

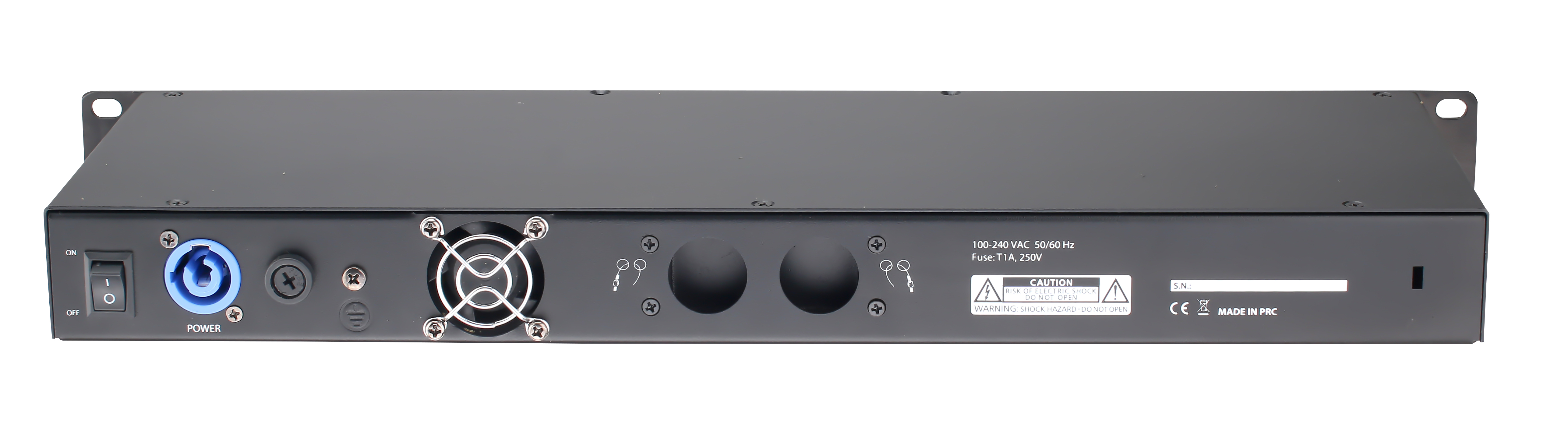

Network switch 8P

产品详情

LF-PNS 8P network switches provide an excellent solution for expanding the network. The very user-friendly interface and high-quality ethercon connectors make it ideal for the entertainment industry, delivering exceptional performance, quality, and reliability.@

Transfer Rate: 10/100/1000Mbps
Interface Media: 10Base-T: 3,4, or 5 unshielded twisted pair; 100Base-TX: 5 unshielded twisted pair; 1000Base-T: 6 unshielded twisted pair
Total output consumption: 240W (each port 30W)

Transfer Rate: 10/100/1000Mbps

Interface Media: 10Base-T: 3,4, or 5 unshielded twisted pair; 100Base-TX: 5 unshielded twisted pair; 1000Base-T: 6 unshielded twisted pair

Total output consumption: 240W (each port 30W)

Universal power supply 100-240V

Port Description: 8x gigabit Ethercon ports

Network standards: IEEE802.3,IEEE802.3u，IEEE802.3x

Poe standards:IEEE802.3AF/AT

Power supply: support

QOS: not supported

Network Management: YES

Ambient temperature :-22~131℉

Status Indicators: Power, Poe，Mode，Fault,Link / Activity Indicator

OLED display, four rubber buttons

Each port can be manually setted power supply function

Non-blocking layer 2 Ethernet switching architecture that forwards and filters packets at full wire-speed for maximum throughput

Auto-MDI/MDIX eliminates the need for crossover cables

Supports MAC address auto-learning and auto-aging

Auto-negotiation ports provide smart integration between 10Mbps, 100Mbps, 1000Mbps hardware

no broadcast bandwidth limitation

Automatically detect and recognize the powered devices (PD),and supply power accordingly

With smart consumption managements, to avoid overload work and maintain the safety & lifetime

1x Fan cooling

Desktop or wall-mounting design

Plug and Play design simplifies installation

rack mountable，1 height unit

weight：2.4kg
