LF-RDM-2-8 Pro

产品详情

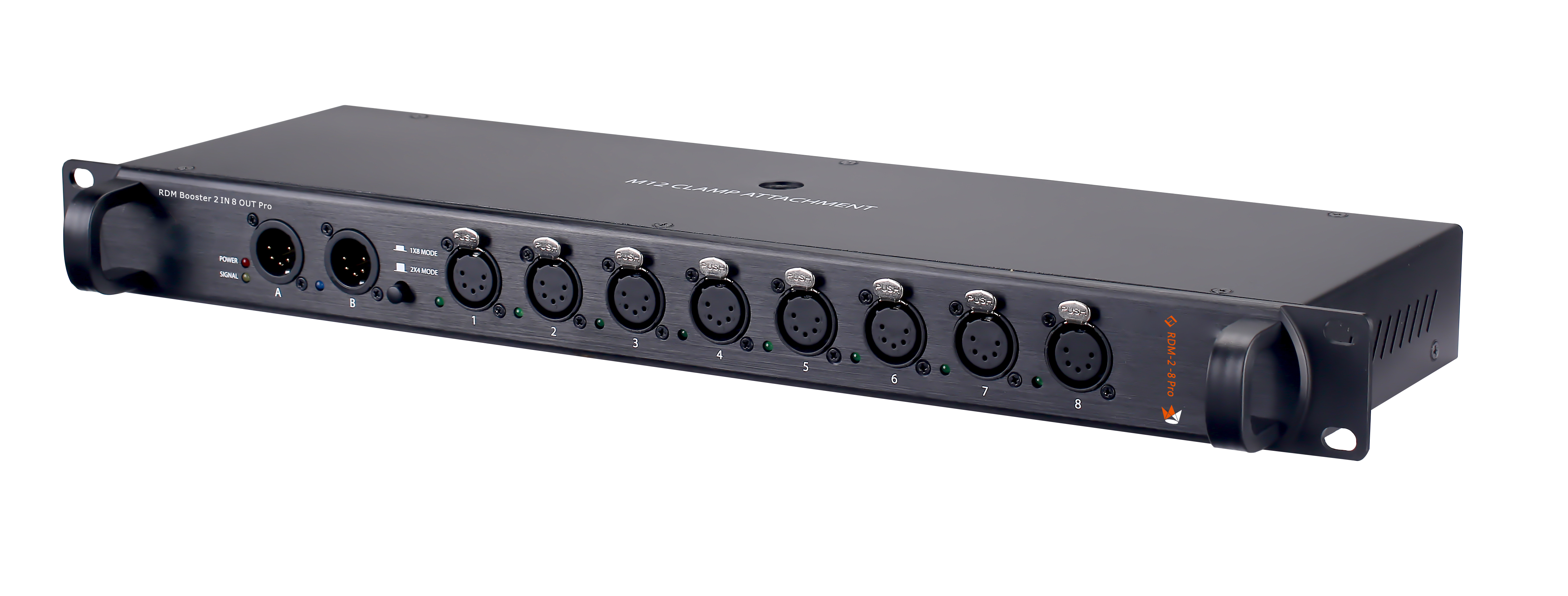

LF-RDM-2-8 Pro splitters distribute the DMX signals of two inputs amplified and processed to eight outputs , in this way , the 32 device limit of the DMX standard can be overcome without difficulty and the creation of star topologies is made possible . It has clear LEDs to show the DMX signal status of each output and input. with the push of a button, you can determine how many outputs should be assigned to each input universe.The LF-SP28-3P can also be used as a repeater to bridge larger distances.LF-RDM-2-8 Pro is designed to distribute/boost 2 incoming DMX signal(A/B) into 8 separate output ports.besides,this one @have mode button to Selects 1X8 mode or 2X4 mode.

RDM capable (bidirectional) 支持RDM（双向）

19 inch rack mountable, 1 height unit 19英寸，1U

add handle on front plate 前面板增加提手

8 output modules 8个输出模块

Mode Button:Selects 1X8 mode or 2X4 mode.

按键选择1X8模式或者是2X4模式工作

Input<A>:DMX input port A.indicator light will illuminate when input signal is being received

1X8模式将从inputA接收的DMX信号发送到所有8个信号输出端口.

Input<B>:DMX input port A..indicator light will illuminate when input signal is being received

2X4模式将从输入端口A接收的DMX信号发送到信号输出1到4，从端口B接收到信号发送到输出5到8.

2 failure behaviors

支持dmx错误检测

Optically isolated

整机所有dmx接口使用光隔离

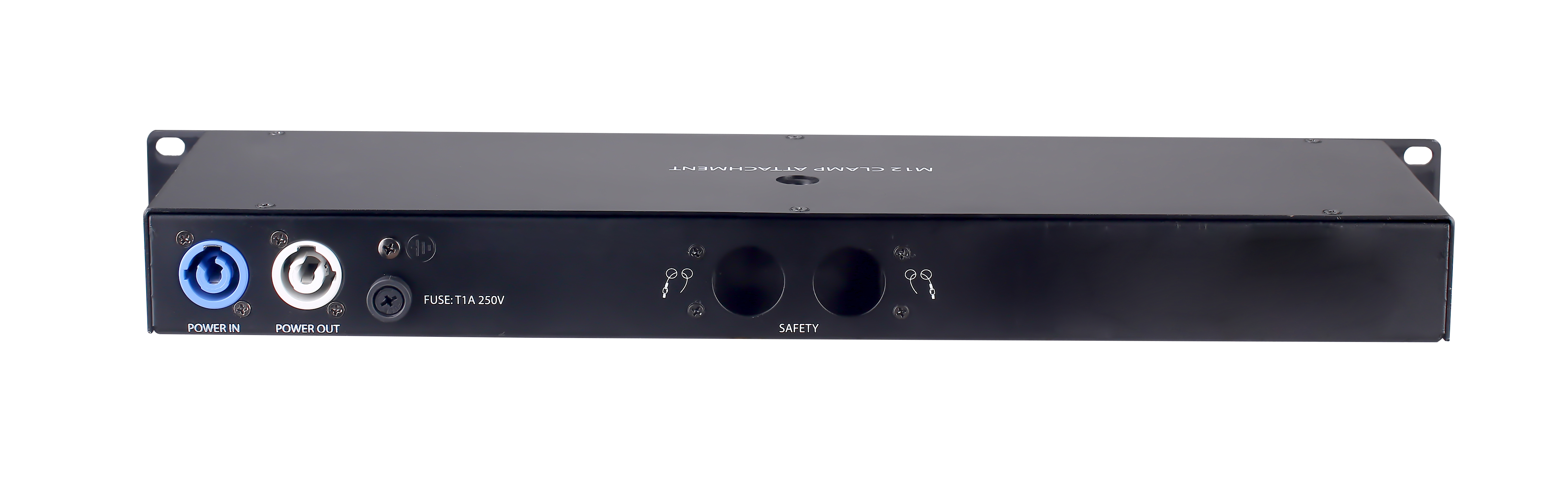

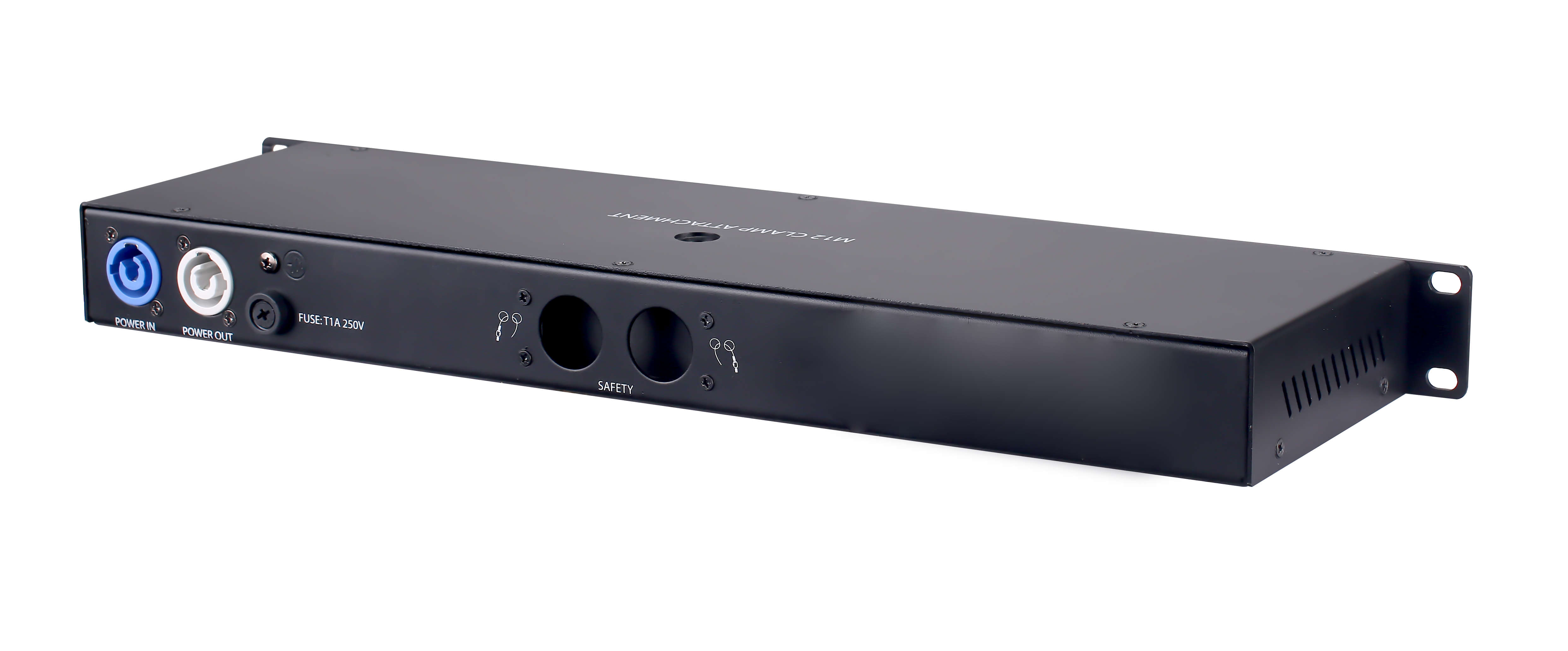

Neutrik powerCON input

Neutrik powerCON输入

Universal power supply

使用通用电源供电

Regenerate / clean DMX signals

支持dmx信号再生和清除

Prevent reflection issues

可解决信号反射问题

LAC power: Auto switching 100V - 240V 50/60Hz

Dimensions: 483 x 168 x 45 m m (LxWxH)

Weight: 2,2 kg

电源：100V - 240V 50/60Hz

尺寸: 483 x 168 x 45 m m (LxWxH)

净重: 2,6 kg
